Acti 9 xID and ID 125 RCCBs

Acti 9 xID & ID 125 Residual Current Circuit Breaker (RCCB) up to 125AResidual Current Circuit Breaker or RCCB is a type of circuit breaker that e...

Acti 9 xID and ID 125 RCCBs top picks

Schneider

A9N16201

View Product
Schneider

A9N16202

View Product
Schneider

A9N16203

View Product
Schneider

A9N16204

View Product
Schneider

A9N16206

View Product
Schneider

A9N16208

View Product
Schneider

A9N16210

View Product
Schneider

A9N16212

View Product
Schneider

A9N16205

View Product
Schneider

A9N16209

View Product
Schneider

A9N16213

View Product
Schneider

A9N16234

View Product
Schneider

A9N16237

View Product
Schneider

A9N16240

View Product
Schneider

A9N16246

View Product
Schneider

A9N16251

View Product
Schneider

A9N16252

View Product
Schneider

A9N16253

View Product
Schneider

A9N16254

View Product
Schneider

A9N16256

View Product
Schneider

A9N16258

View Product
Schneider

A9N16260

View Product
Schneider

A9N16261

View Product
Schneider

A9N16263

View Product
Schneider

A9N16255

View Product
Schneider

A9N16259

View Product
Schneider

A9N16262

View Product
Schneider

A9N16321

View Product
Schneider

A9N16324

View Product
Schneider

A9N16327

View Product

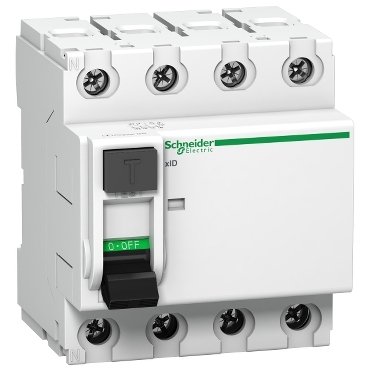

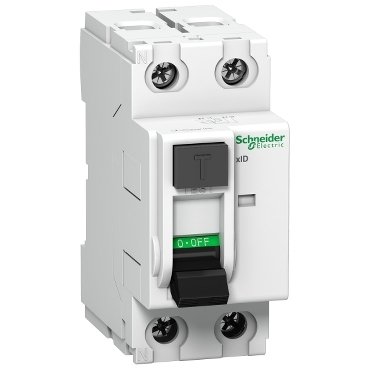

Acti 9 xID & ID 125 Residual Current Circuit Breaker (RCCB) up to 125A

Residual Current Circuit Breaker or RCCB is a type of circuit breaker that ensures electrical protection and prevents accidents, deaths and other mishaps. This device senses current and interrupts low voltage circuits in case of faults by disconnecting the primary circuit within seconds.The Acti 9 xID and ID 125 by Schneider Electric are professional-grade RCCBs that provide optimum safety with long and reliable service.

Features

A Residual Current Circuit Breaker (RCCB) is an essential safety measure when it comes to the safeguarding of all electrical circuits. These are current sensing devices, which can automatically detect and disconnect the circuit whenever a mishap occurs in the connected circuit or even when the current exceeds the rated sensitivity. Schneider Electric is a leading player in electrical protection with the Acti 9 xID and ID 125 residual current circuit breakers being prominent offerings.

  • Nominal current: up to 125A
  • 30mA sensitivity: additional protection against direct contact (in accordance with IEC 364)
  • 100, 300, 500 mA sensitivities: additional protection against fire and indirect contact (in accordance with IEC 364)
  • Class AC - for normal installation
  • Class Si (New) - for electrically disturbed networks (with harmonics, pulsating DC components etc.) & for harsh environments (presence of corrosive atmosphere, chemical gases, humid location  etc)
  • 4P RCCB is also suitable for 3phase 3 wire installation
  • Conforms to IS 12640 and IEC/EN 61008
  • ISI and CE marked
  • Suitable for isolation in accordance with industrial standards: IEC 60947
  • Intermediate auxiliary required for add-on protection and indication auxiliaries
  • ID-125 RCCBs are suitable for indication OFsp auxiliary only
  • Suitable for additional Protection and Indication auxiliaries: ON/OFF, Trip, Shunt trip, Undervoltage trip, Overvoltage trip, Communication Auxiliary

Benefits

A residual current circuit breaker (rccb) is a crucial safety component installed in electrical circuits. It offers protection against voltage fluctuations, electricity leaks and earthing faults. The primary function of an rccb is to automatically break the electric circuit when the rated sensitivity is breached. Generally, it is used in industrial and commercial establishments to offer protection against fire and electrocution as a safety measure. Below we have mentioned some of the many benefits of deploying Acti 9 xID and ID 125 RCCBs from Schneider Electric India:

  • Easy monitoring: Earth fault indication on front face
  • Immunity against nuisance tripping
  • New SI RCDs offers enhanced immunity to electrical disturbances and polluted & corrosive environments
  • Ensures no accidental contact with live part – Finger-proof IP-20 terminals
  • Avoids false insertion of cables and loose termination with Pull up terminals
  • 100% recyclable & recoverable materials.

Applications

Protection in all industrial and commercial buildings against:


  • Electrocution (in accordance with installation standard IEC 60364 and national standards)
  • The risk of fire due to current leakage into building electrical installations.
  • RCCBs guard against electrical shock in both home and industrial wiring.
  • RCCBs are used to guard against earth leakage faults.
  • RCCBs are typically found in low-voltage applications such as office spaces, industrial layouts, and residential homes.
  • In low-voltage settings, RCCBs are used.
  • RCCBs are also employed in office electrical systems.
  • It's been used in both industrial and residential settings.
